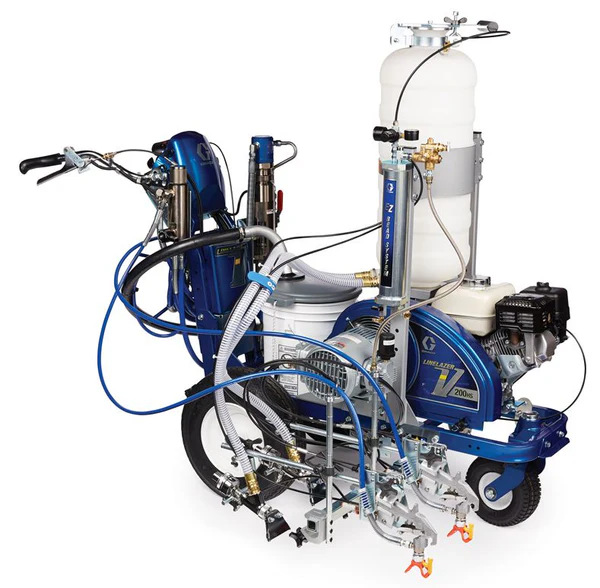

Graco LineLazer V 200HS HP Reflective Series, Two Guns, Automatic, Pressurized Beads Installed 1-Tank – 17H465
The HP Reflective Series adds superior bead application capability to the HP Automatic Series, which includes automatic skip-line production and real-time job performance tracking for proof-of-job requirements. Take your traffic marking projects to the next level with durable, reusable stencils and templates designed for professional results.
Product Manuals
📐📘 3A3426EN-J – Operation Manual for LineLazer V 200HS & 200DC (Standard & HP Series)
📐📘 3A3390EN-H – Parts Manual for LineLazer V 200HS/200DC
📐📘 3A3428EN-B – LineLazer V 3900, 5900 Airless Line Stripers, Operation
📐📘 311254EN-P – Silver and Flex Plus Spray Guns, Instructions
📐📘 3B0122EN-A – Displacement Pump Safety Instructions
Product Media
Need dependable Traffic Marking Paint? Explore our professional-grade options. For added traction, reflectivity, and durability, pair with Paint Additives and Industrial & OEM Coatings.
Key Features
✔ Pressurized EZ Bead System: Ensures proper bead flow and deep paint penetration with dual bead tanks (120 lbs each).
✔ Automatic Paint Gun System: Push-button line production with solenoid-driven precision for skip-lines and continuous marking.
✔ Auto-Layout II: Lays down pre-marks while walking, eliminating the need for measuring tapes and aerosol cans. Reduces layout time by 50%.
✔ LiveLook Display with SmartControl: Provides real-time striping data and USB download capability for job tracking.
✔ J-Log System: Automatically logs job performance and proof-of-work data via USB for verification and compliance.
✔ Honda® GX Engine: Trusted power with Oil Alert shutoff for durability and performance in the field.
✔ EasyMark Gun Adjustment System: Effortless alignment with guide marks and QuikSelect Gun Selector for dual-gun operation.
✔ EZ Align Wheel System: Fast, tool-free front wheel alignment for perfect striper tracking.
✔ DualComfort Handlebar System: Adjustable handlebar for ergonomic operation and all-day comfort.
✔ Additional Highlights: Endurance Chromex Pump, High-Efficiency Hydraulic Motor, High-Capacity Cooling, Easy Out Pump Filter, and LazerGuide 1700 Laser System for pinpoint accuracy.
| Frequently Asked Questions |
|---|
|
Q: What surfaces can this be used on? A: It is suitable for asphalt, concrete, and other paved surfaces. Clean, dry surfaces yield best results. |
|
Q: What paint types are compatible? A: Compatible with waterborne, solvent-based, or epoxy traffic paints. Always check specs for material compatibility. |
|
Q: Is training required to operate this unit? A: Yes. Operators should be trained in setup, maintenance, safety, and calibration for optimal striping results. |
|
Q: Can this unit apply glass beads? A: Yes, the integrated pressurized bead system applies reflective glass beads during striping for night visibility. |
|
Q: How do I clean and maintain the machine? A: Flush with the correct cleaning fluid after use. Inspect and maintain hoses, tips, and filters to ensure consistent operation. |
Additional information
| Road Equipment Brand | Graco |
|---|---|
| Road Equipment Type | Automatic gun, Glass Beads, Line Stripers |
| Attachments | LazerGuide 1700 |
| Bead System | Pressurized Bead System |
| Bead Tank Size (lb) | 120 |
| Compatible Material | Road-Marking Paint |
| Compatible Surfaces | Pavement, Turf |
| Engine Brand | Honda |
| Engine Model | GX200 |
| Features | Air Valves, Bead Embedment, Bead Pressurized System, Bead Tank |
| Fuel Tank Capacity (gal) | 0.95 |
| Gun Activation | 2 Automatic |
