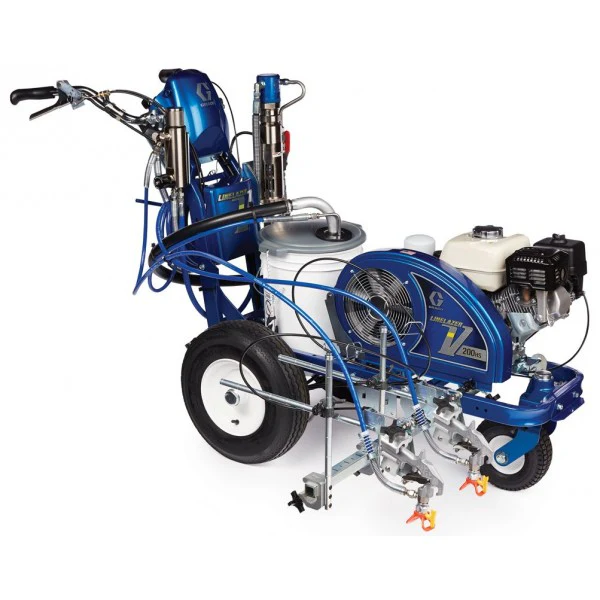

Graco LineLazer V 200HS HP Automatic Series Gas Hydraulic Airless Line Striper, 1 Auto Gun, 1 Manual Gun – 17H463
The HP Automatic Series enhances productivity with automatic skip-line production and real-time job tracking through SmartControl and J-Log technologies. For professional line striping on large-scale projects, pair this unit with our high-durability, reusable stencils and templates for optimal results.
Product Media
Product Manuals
📐📘 3A3426EN-J – LineLazer V 200HS & 200DC Operation Manual (Standard & HP)
📐📘 3A3390EN-H – Parts Manual for LineLazer V 200HS/200DC
📐📘 3A3428EN-B – LineLazer V 3900, 5900 Airless Line Stripers, Operation
📐📘 311254EN-P – Silver and Flex Plus Spray Guns, Instructions
📐📘 3B0122EN-A – Displacement Pump Safety Manual
Need dependable Traffic Marking Paint? Explore our professional-grade options. For added traction, reflectivity, and durability, pair with Paint Additives and Industrial & OEM Coatings.
Key Features
✔ Automatic Paint Gun System: Stripe skip-lines effortlessly with solenoid-driven precision and push-button control to reduce operator fatigue.
✔ Auto-Layout II: Walk and pre-mark with SmartControl, eliminating the need for strings, tape, or aerosol cans—cuts layout time by up to 50%.
✔ LiveLook Display with SmartControl: Monitor pressure, speed, and distance in real time; USB-enabled for job tracking.
✔ J-Log System with USB Download: Automatically logs job performance for proof-of-work records and download-ready reporting.
✔ Honda® GX Engine: Reliable, fuel-efficient power with Oil Alert to prevent engine damage from low oil conditions.
✔ EasyMark Gun Adjustment System: Intuitive guide-marking for precise gun placement; includes 2-gun capability with QuikSelect for quick switching between auto and manual guns.
✔ EZ Align Wheel System: Simple front wheel adjustment ensures straight, accurate striping with no tools required.
✔ DualComfort Handlebar System: Ergonomic handlebars adjust easily to fit any operator for improved comfort on long jobs.
✔ Endurance Chromex Pump: Industry-leading durability with 4x harder surface coating for long-term wear resistance and material compatibility.
✔ Additional Highlights: High-efficiency hydraulic motor, high-capacity cooling system, QuikSelect Gun Selector, Easy Out Pump Filter, and LazerGuide 1700 Start/Stop Laser for optimal line placement.
Frequently Asked Questions
| Common Questions |
|---|
|
Q: What surfaces can this be used on? A: This striper is compatible with asphalt, concrete, and other paved substrates. Ensure surfaces are clean and dry before painting. |
|
Q: What paint types work with this model? A: Suitable for waterborne, solvent-based, and epoxy traffic paints. Verify material compatibility with Graco specifications. |
|
Q: Is training required for operation? A: Basic training is highly recommended for setup, calibration, and maintenance, especially when using auto and manual gun systems together. |
|
Q: Can this equipment apply glass beads? A: Yes. This model is compatible with pressurized or gravity-fed bead dispensers for enhanced reflectivity. |
|
Q: How should I clean and maintain the system? A: Flush with the proper cleaning solution after use. Regularly check filters, tips, and lines to avoid clogs and ensure consistent operation. |
Additional information
| Road Equipment Brand | Graco |
|---|---|
| Road Equipment Type | Automatic gun, Line Stripers, Manual gun |
| Compatible Material | Road-Marking Paint |
| Compatible Surfaces | Pavement, Turf |
| Engine Brand | Honda |
| Engine Model | GX200 |
| Fuel Tank Capacity (gal) | 0.95 |
| Gun Activation | 1 Automatic & 1 Manual |
| Includes | LazerGuide 1700, Flex Plus Gun (2), LineLazer RAC 5 319 Spray Tip (2), LineLazer RAC 5 421 Spray Tip (2), RAC 5 Tip Guard (2), 3/8 in x 22 ft BlueMax II Airless Hose, 3/8 in x 3 ft BlueMax II Airless Whip Hose, TSL, 4 oz |
